The JCB-M3 is a
panel/harsh-mounted weighing transmitter that offers exceptional reliability, advanced
filtering ,and tested ability to perform stably under interference of harsh
industrial environments.
It is customized for dynamic weighing systems with the highest demand for reliability, response speed and accuracy.
Brand:
JADEVERItem NO.:
JCB-M3Product Origin:
ChinaProduct Detail

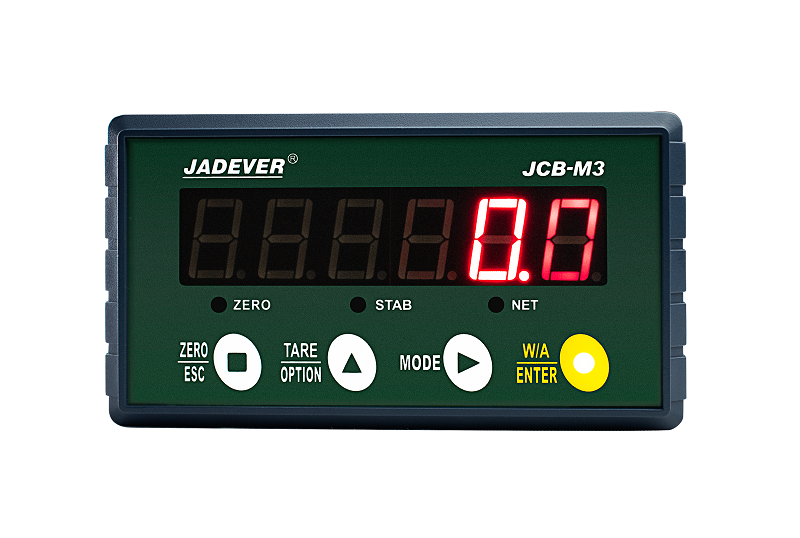

JCB-M3 Weighing Transmitter
Features：
●OIML R76 approval;
●With second generation anti-vibration filter;
● Support calibration without weights;
● 1,000,000 weight resolution ability;
HARDWARE HIGHLIGHTS
Standard
● RS232 or RS485 selectable by switch;
● 1 input 2 output I/O;
Options
● Single network port+RS232/RS485selectable, support Modbus;
● Dual network ports, support ModbusTCP;
● Profinet or Ethernet IP or EtherCAT or CCLink IE;
● Analog output
Digital Version
Standard
● RS232 or RS485 selectable by switch;
● RS485 for digital load cell interface;
● 1 input 2 output I/O;
Options
● 16-bit analog output (Voltage/Current Type);
IPv6 network supported
