JWI-531 Waterproof Indicator Features: ●304 stainless steel housing ●Fully sealed circuit board design, with waterproof, moisture-proof, dust-proof performance ● Functions of pre-tare, checkweighing, accumulation, animal weighing, low battery alert, etc. ●Single and multi-point calibration to ensure accuracy ●Filter level and weighing speed can be selected according to the environment ●Optional RS-232 interface ●Widely used in high humidity environments, seafood markets, food processing plants, etc. Specification: Model JWI-531 External Display Accuracy 1/12000  or  1/15000 Unit Selection kg、g、lb、lb.oz/斤、pcs Display Screen (mm) 6-digit LED red display character height 25 Input Sensitivity 0.2 microvolts/division Input Voltage Range -2 mV~20 mV Sensor Excitation Voltage DC 5V, can be connected to four 350 ohm sensors Non-linearity 0.003% of full scale weight Input Impedance Greater than 10×106 ohms A/D conversion method △-Σ A/D internal resolution 700,000 A/D conversion output period Approx  6~10 times per second Power supply AC: 110/220V, with built-in lead-acid battery (6V/4Ah) External Dimension(mm) 238×94×145

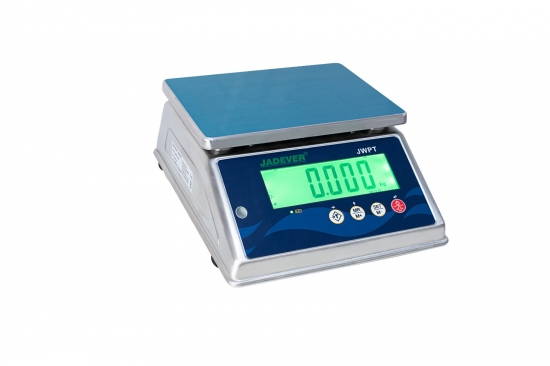

JWPT Stainless Steel Weighing check Waterproof Table Scale Features: ●304 stainless steel housing ●Fully sealed circuit board design, with waterproof, moisture-proof, dust-proof function ●LCD display. Three-color backlighting combined with checkweighing function facilitates a more intuitive feeling of the weighing status. ●Automatic shutdown and power saving functions ●Single-point and multi-point calibration to ensure accuracy ●Selection of filtering level according to the environmental needs ●Optional RS232 communication function ●1/12000 or 1/15000 accuracy, fast, stable and precise ●Widely used in aquatic products, meat, vegetables and other processing industries Specification: Model JWPT-3k JWPT-6k JWPT-15k JWPT-30k Maximum weighing Capacity(kg) 3 6 15 30 Minimum Division(g) 0.2 0.5 1 2 Unit selection kg / g / lb / lb.oz / 斤 / pcs Display Screen(mm) 6-digit LCD display, character height 37 Scale plate size and material(mm) 200×258 Power supply AC：110V/220v,built-in rechargeable battery(6V/4Ah) Appearance size(mm) 259×329×130

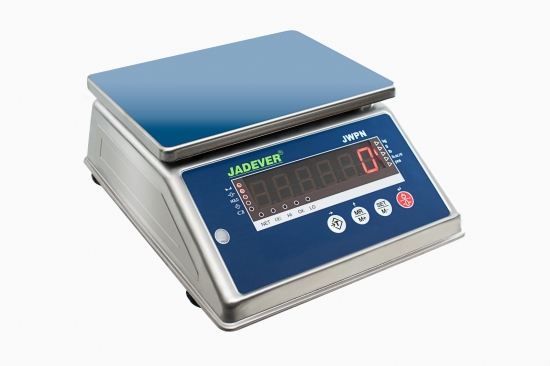

JWPN Stainless Steel Waterproof Table Scale Features: ●304 stainless steel housing ●Fully sealed circuit board design, with waterproof, performance, moisture-proof, dust-proof function ●LED double sided display with selectable brightness, automatic power off and power saving design ●Single-point and multi-point calibration to ensure accuracy ●Selection of filtering level according to the use of environmental needs ●Optional RS232 communication function ●1/12000 or 1/15000 accuracy, fast, stable and precise ●Widely used in aquatic products, meat, vegetables and other processing industries Specification： Model JWPN-3k JWPN-6k JWPN-15k JWPN-30k Maximum weighing Capacity(kg) 3 6 15 30 Minimum Division(g) 0.2 0.5 1 2 Unit selection kg / g / lb / lb.oz / 斤 / pcs Display Screen(mm) Front character height 25mm, back character height 16mm Scale plate size and material(mm) 200×258 Power supply AC：110V/220v,built-in rechargeable battery(6V/4Ah) Appearance size(mm) 259×329×128

JIF-24A is designed for batching scale that can sort feeding orders of a variety of materials. It can be widely used in concrete mixing, bituminous mixing, metallurgy, chemical, feeds industries etc. Version Features： 1. User-Friendly . Better Experience 2. Memory card build in, Dynamic batching process can be graphically displayed for better understanding and monitoring;. 3. Support the batching of 12 kinds of materials. It can be customized according to the batching process sequence, which is flexible to use; 4. The working process is clear. Feeding value and time of the material can be set, and real-time feeding dynamic can be displayed; 5. User-friendly design: Save function when power down and monitoring alarm function; Communication: RS485+RS232：For connecting PC, PLC, Printer, Label Printer, Remote Display, Code Printer, or other external devices, for reading and setup remotely; USB： For importing and exporting recipes, works, I/O function communication and other parameters, upgrading system software, customizing boot screen, etc; 12 Input/16 Output ：For staring, stopping, feeding, unloading, clamping/loosening bags, etc; Modbus TCP：For connecting PC,PLC, Printers, etc., for reading remotely.

The JCB-M3 is a panel/harsh-mounted weighing transmitter that offers exceptional reliability, advanced filtering ,and tested ability to perform stably under interference of harsh industrial environments.

It is customized for dynamic weighing systems with the highest demand for reliability, response speed and accuracy.

Features: ●Eco-Product; High efficiency and economical ●Large LCD display with green L ED backlight ●Zero/Tare/Simple/Weighing/Simple counting/Accumulation /Net & Gross weight/Check weighing function ●Adjustable capacities, resolutions and parameters ● Supports to four analog load cells ●Power saving design with high efficiency and environment protection. ●Convenient with three power options: Solar energy, Adapter, Li-ion Battery ●In times of strong sunlight, 4 pieces of high quality solar energy panels can provide up to 200mA charging current ●It can work as long as there is sunlight ( no need of direct radiation).And battery is under charging at the same time ●Li-ion battery can be repeatedly used with long service life ●When the battery is fully charged, it can operate normally for up to 200h. When used in a light place, the solar energy will continue to charge the battery, so the indicator can be used for a longer period of time. ●Ideal for applications in outside market, production, packaging, warehouse, inventory, shipping and receiving areas or any other place where power supply is inconvenient Specifications： Model JWI-700S Resolution 1/15000 Weighing Unit pcs /台斤/ lb.oz /  g / kg Display 6 digits, 30mm digit height, LCD display with green LED backlight Dimension(mm) 274 x170x117 Weight Net weight:0.8kg   Gross weight:1 .9kg Power supply Solar energy; 4000mA Li-ion battery; 6V/300mA adapter Load cell excitation DC 3.3v,up to 4 x 350 ohm load cells Certification CE

Livestock Scale All the electronic parts are installed on the top of the scale. Curved control for economic durability. You could wash down the scale every day.  All the cables go though the inside of the scale. If you want to use the scale to weigh horse, we could also customize the width,the length and the height of the fence.   Features: 1. Powerful animal weighing function 2. Pass-through scale body design, fast weighing speed and high accuracy 3. All the electronic parts are installed on the top of the scale 4. Support washing down 5. Support customization of the length, width and height of the fence 6. Special capacity can be customized 7. Ideal for applications in ground, outdoors, factory plant, farm and packing house   Specifications:   Mild Steel Type A：   Mild Steel Type B： Stainless Steel:

Jadever weighing scale indicator JWI-700B is our biggest LCD display with white backlight,  with our unique LED Tower Light to do HI LO OK weight check.

Jadever weighing scale indicator JWI-3000 with attractive outline design can send weight info to smartphone by Bluetooth

JCA is Jadever Multifunctional counting scale, the ACAI function can ensure more accurate piece counting result.Special rugged construction can support up to 60kg weight.

Jadever weighing scale indicator JWI-710 is our largest LED display indicator with attractive outline design can connect by RS232, U-KEY, Bluetooth, U-disk etc.

Jadver JWN table weight scale use our new version software with more easy operation weighing functions, and it is the only Check Weighing Scale can have three color change for HI/LO/OK, red for HI, green for OK, orange for LO, no need to connect to the tower light.
