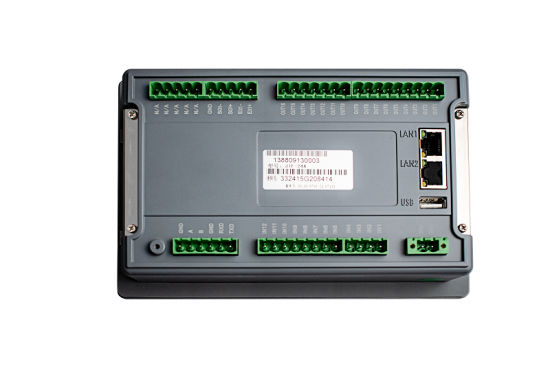

JIF-24A Batching Scale Controller

JIF-24A is designed for batching scale that can sort feeding orders of a variety of materials. It can be widely used in concrete mixing, bituminous mixing, metallurgy, chemical, feeds industries etc.

Version Features：

1. User-Friendly . Better Experience

2. Memory card build in, Dynamic batching process can be graphically displayed for better understanding and monitoring;.

3. Support the batching of 12 kinds of materials. It can be customized according to the batching process sequence, which is flexible to use;

4. The working process is clear. Feeding value and time of the material can be set, and real-time feeding dynamic can be displayed;

5. User-friendly design: Save function when power down and monitoring alarm function;

Communication:

RS485+RS232：For connecting PC, PLC, Printer, Label Printer, Remote Display, Code Printer, or other external devices, for reading and setup remotely;

USB： For importing and exporting recipes, works, I/O function communication and other parameters, upgrading system software, customizing boot screen, etc;

12 Input/16 Output ：For staring, stopping, feeding, unloading, clamping/loosening bags, etc;

Modbus TCP：For connecting PC,PLC, Printers, etc., for reading remotely.
