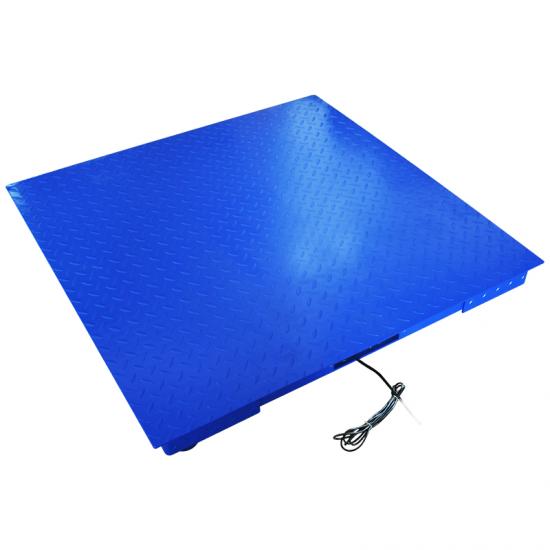

U-shaped Steel Floor Scale with Ramp used for Industrial Warehouse

Floor scales are perfect for heavy duty weighing, They can be loaded with ease using a fork truck. If the optional ramps option is selected they are also suitable for loading via pallet truck.

  • Brand:

    JADEVER
  • Item NO.:

    JPF-2000 U-Shaped
  • Product Origin:

    China
  • Capacity:

    500-5000kg
  • Division:

    15000
  • Power supply:

    Battery or Adaptor or AC 110V/220V
  • Product Detail

What are features of Iron Floor Scale?

· Customized size available

· Heavy duty scale body

· 4 pcs shear beam load cell

· Checker plate or flat plate optional

· Ramp optional

· Waterproof junction box for the longer service life

· Single point and linear calibration


Model FPF-2000
Capacity(kg) 0.5t-1t 0.5t-3t 0.5t-3t 1t-5t
Platform size(cm) 80 × 80 100 × 100 120 × 120 150 × 150
Load cell JL-05(4pcs shear beam load cell)
Material  Iron



What indicators are available to match Iron Floor Scale?

Optional indicators including: JWI-3000W/3000C/3100/3000/586/688/700W/710/700B/700C/700P/JIK-4/6/8,etc.

What application will Iron Bench Scale be used for?


For weighing Large Items

For Counting Large Items or Large Quantities

For a range of Industries and Warehouse
